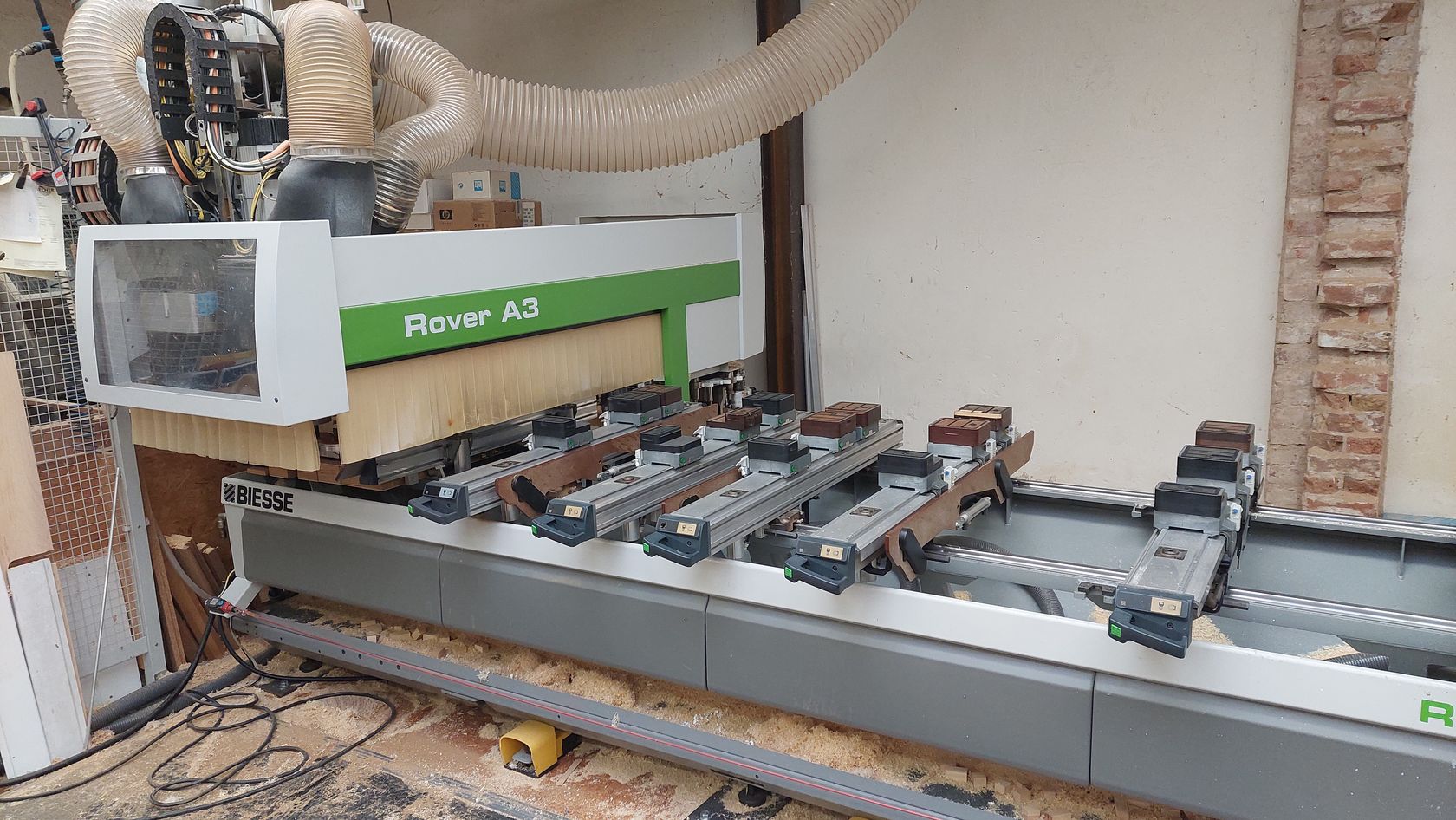

4711 BIESSE ROVER A 3.30 CNC – Working Center

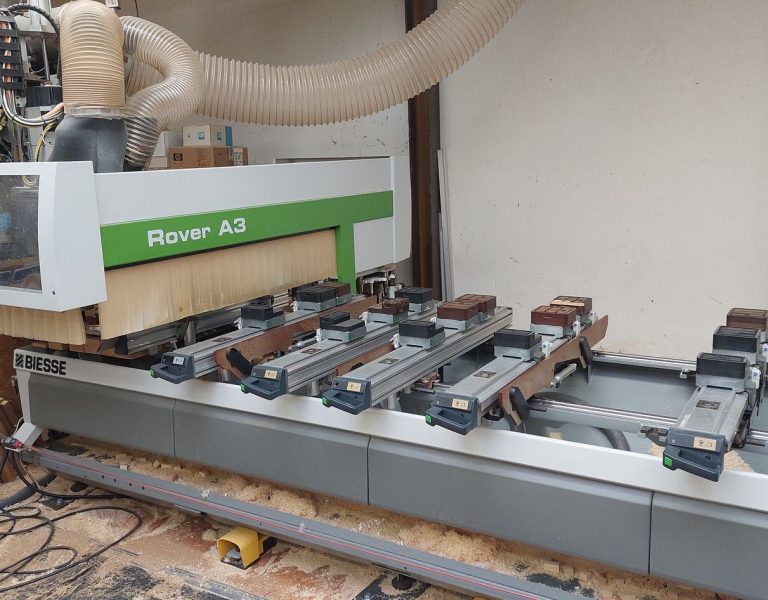

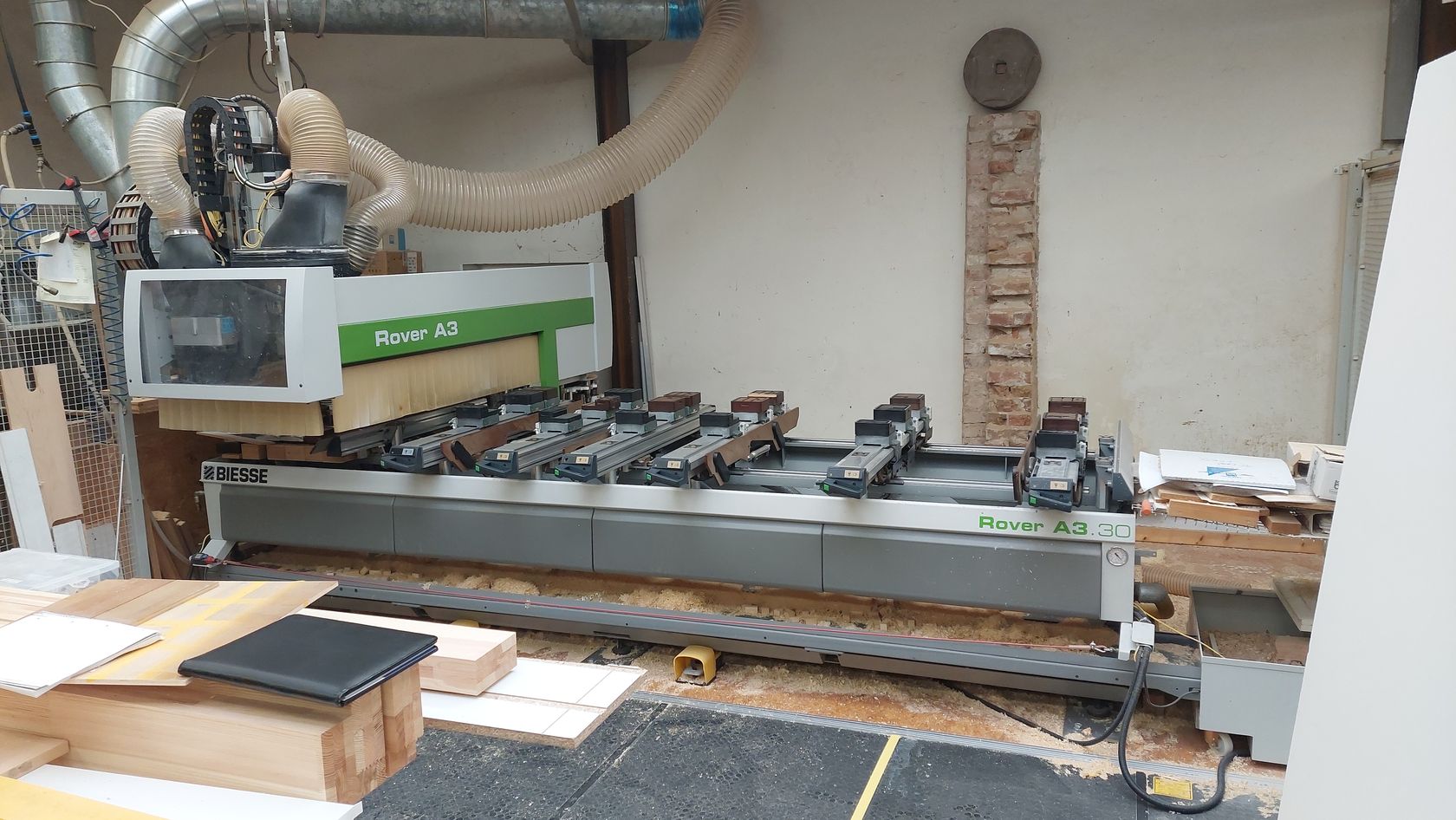

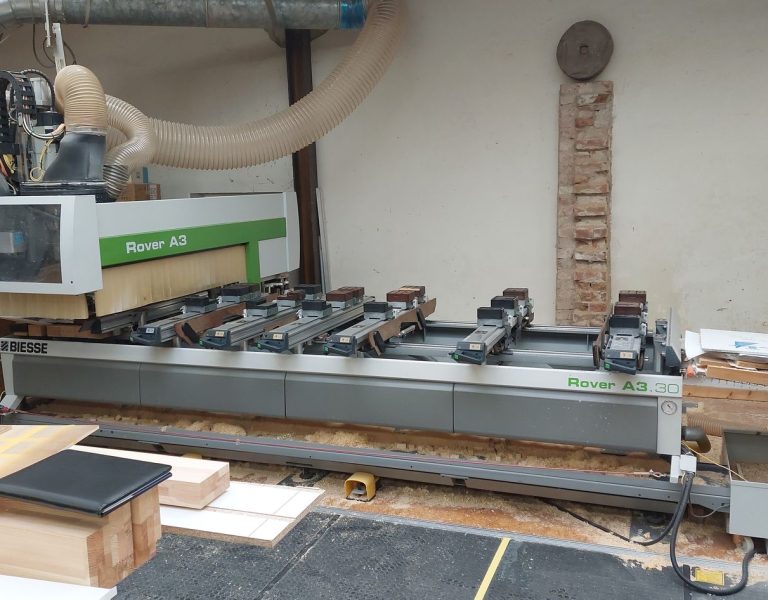

BIESSE ROVER A 3.30 CNC - Working Center

Technical data:

Media:

Artr.-Nr.: 4711
Make: BIESSE
Type: ROVER A 3.30
Year: 2006
Mach.-No.:

Working dimensions:
X-axis: 3,060 mm
Y-axis: 1,260 mm
Z-axis: 150 mm

Work table:

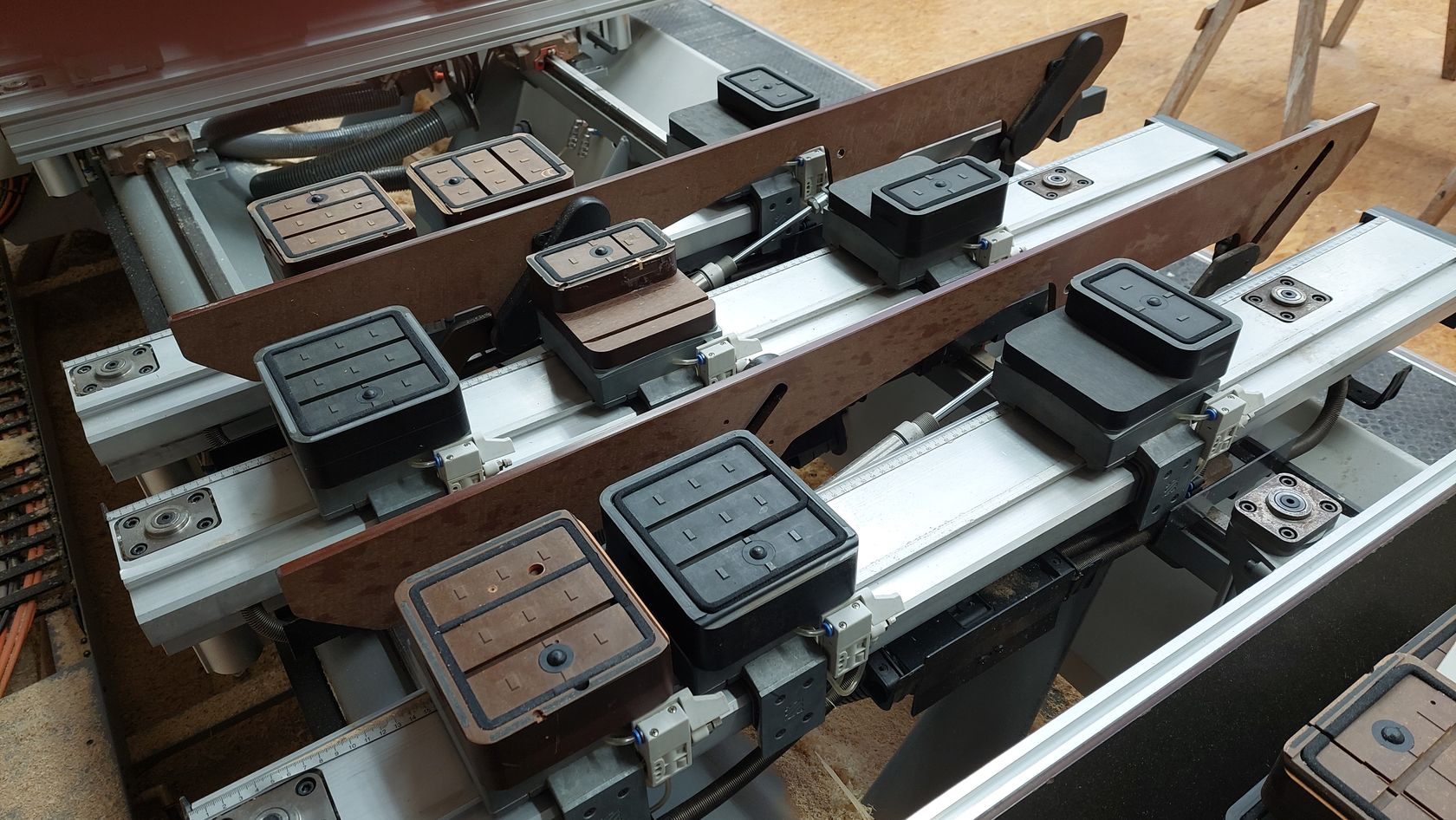

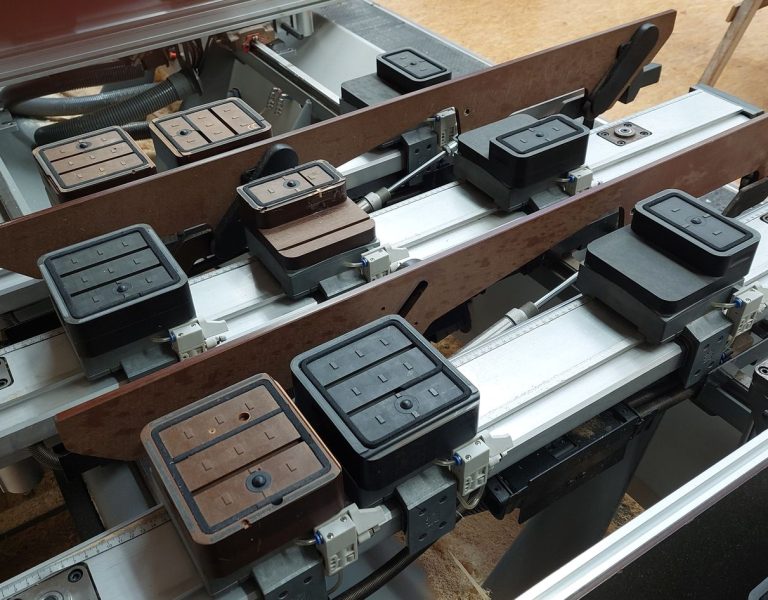

6 ATS workpiece supports, each with 3 vacuum suction cups
6 rear workpiece stops, program-lowered, installed in one support each
6 front workpiece stops, program-lowered, installed in one support each, positioned approximately 970 mm from the rear
2 + 2 side workpiece stops
4 lifting rails, pneumatically program-lowered, for positioning heavy workpieces

Vacuum pump 90 cbm/h

Machining head equipment:
Drilling head BH 21 L with:
14 vertical drilling spindles, each individually accessible
2 + 2 horizontal drilling spindles in the X direction

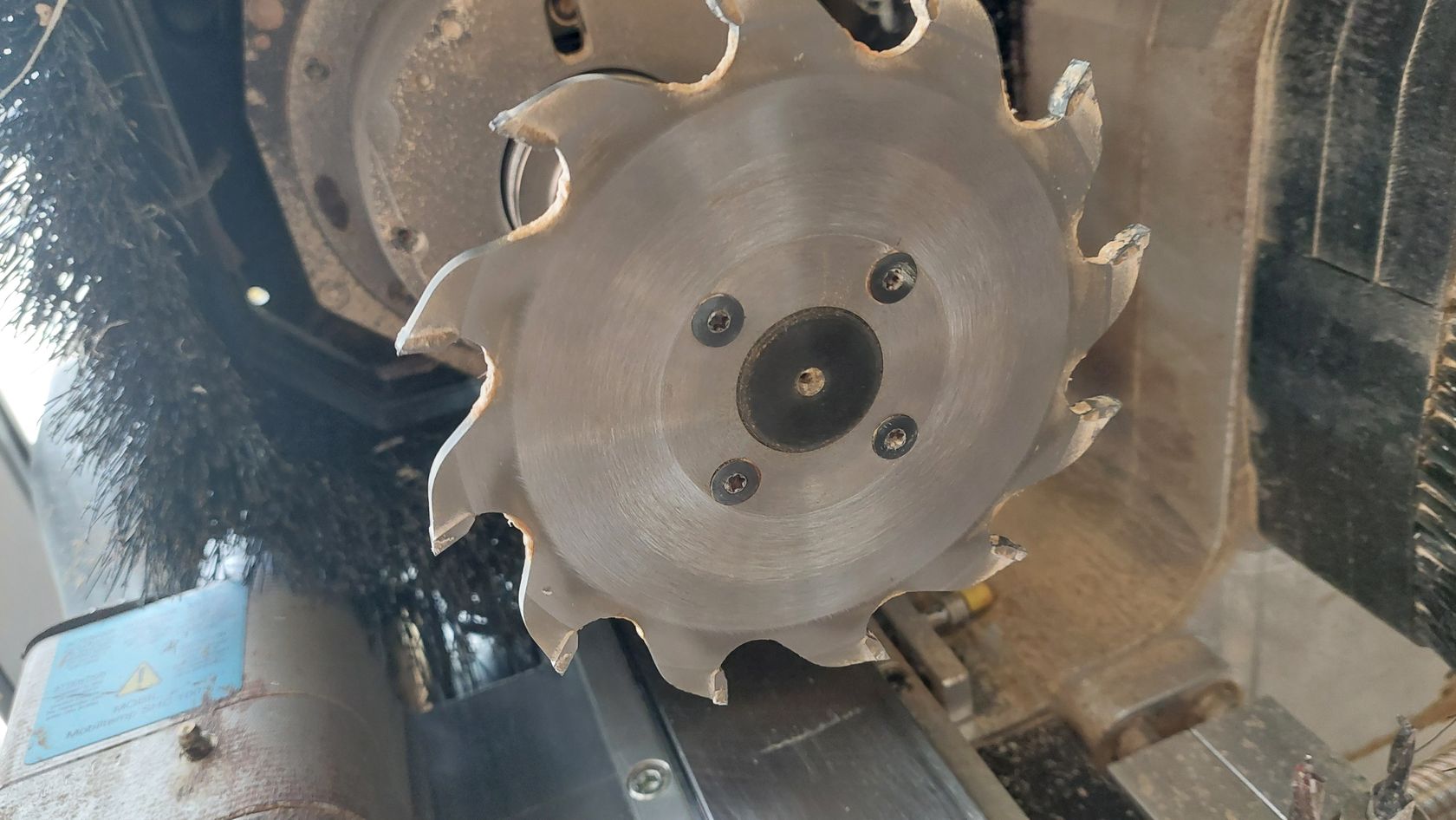

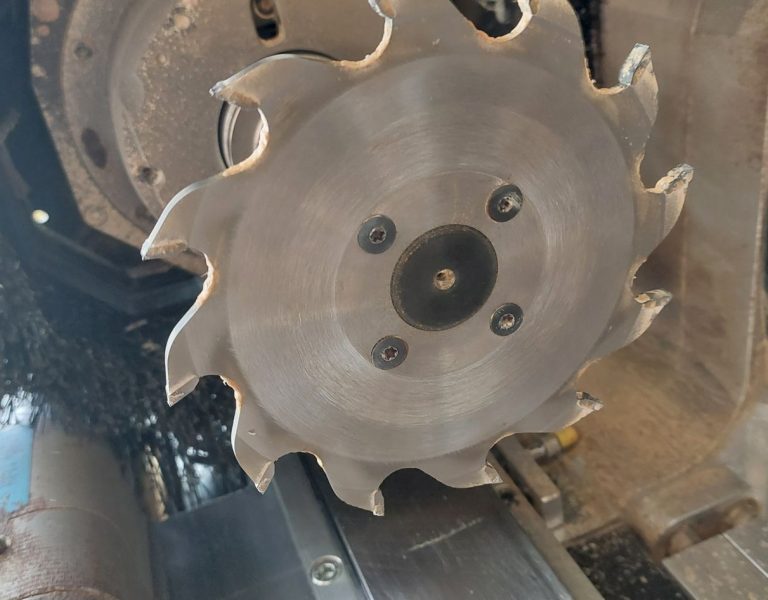

Groove saw, diam. 120 fixed in the X direction

Milling spindle 12 kW, HSK 63 F
Rotation speed 1,000 - 24,000 rpm
Rotation right and left

C - axis 360 degrees for adapter units

Tool magazine 18-fold

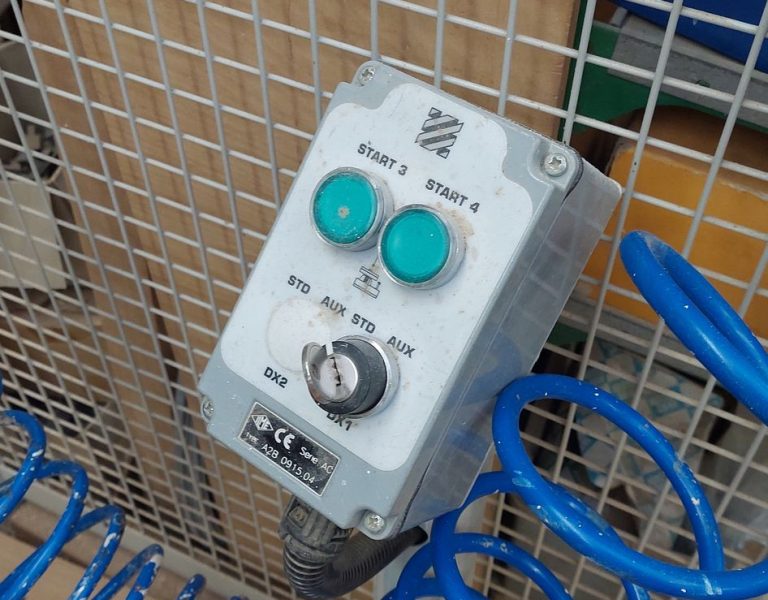

Safety features:
* Safety mats in front of the machine
* ​​Protective grille on the left with access door

XP 600 control system with NC HOPS 4 programming software

Without tools and units

Optionally available:
* Adapter unit with lock case for door machining
* Adapter unit with pivoting milling unit
* Adapter unit with saw
